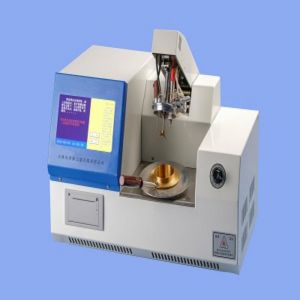

GB/T261 Fully Automatic Closed Flash Point Tester Oils Testing Equipment
Features
★ Large color LCD screen display, full English man-machine dialogue interface, touch screen type keys, and prompt menu oriented input for parameters such as predictable temperature, sample label, atmospheric pressure, and test date;
★ Simulate and track the function curve between temperature rise and test time, with Chinese operation software prompt modification function and parameter prompt functions such as test date and time;
★ Equipped with standard RS-323 and 485 computer interfaces, the lower computer stores 120 sets of historical data. Connected to the computer, it can store data in a large capacity and store and transmit data for a long time. The upper computer can modify the parameters of the lower computer.
★ Automatically correct the impact of atmospheric pressure on the test and calculate the correction value. Microcomputer detection and automatic correction of system deviation.
★ Automatic completion of cover opening, ignition, detection, and printing data;
★ Electronic ignition, forced air cooling
Specifications
| Model |
BWBS-8C |
BWBS-109 |
BWBS-309 |
| Range |
RT～300℃ |
RT～300℃ |
RT～300℃ |
| Resolution |
0.1℃ |
0.1℃ |
0.1℃ |
| Repeatability |
≤2℃ |
≤2℃ |
≤2℃ |
| Reproducibility |
≤±4℃ |
≤±4℃ |
≤±4℃ |
| Lifting mode |
Auto tilt |
Auto tilt |
Auto tilt |
| Display Method |
Color screen |
Color screen |
Color screen |
| Detection method |
automatic |
automatic |
automatic |
| Data output |
Print |
Print |
Print |
| Ignition mode |
Electricity and gas |
Electricity and gas |
Electricity and gas |
| Number of test cups |
Single cup |
Single cup |
Single cup |
| Usage environment |
10-50℃ |
10-50℃ |
10-50℃ |
| Relative humidity |
85% |
85% |
85% |
| Supply voltage |
AC220V |
AC220V |
AC220V |
| Power frequency |
50Hz±5% |
50Hz±5% |
50Hz±5% |
| Power |
≤300W |
≤300W |
≤300W |
| Overall dimensions |
505mm*320mm*310mm |
505mm*320mm*310mm |
505mm*320mm*310mm |
| Net Weight |
16kg |
16kg |
16kg |
